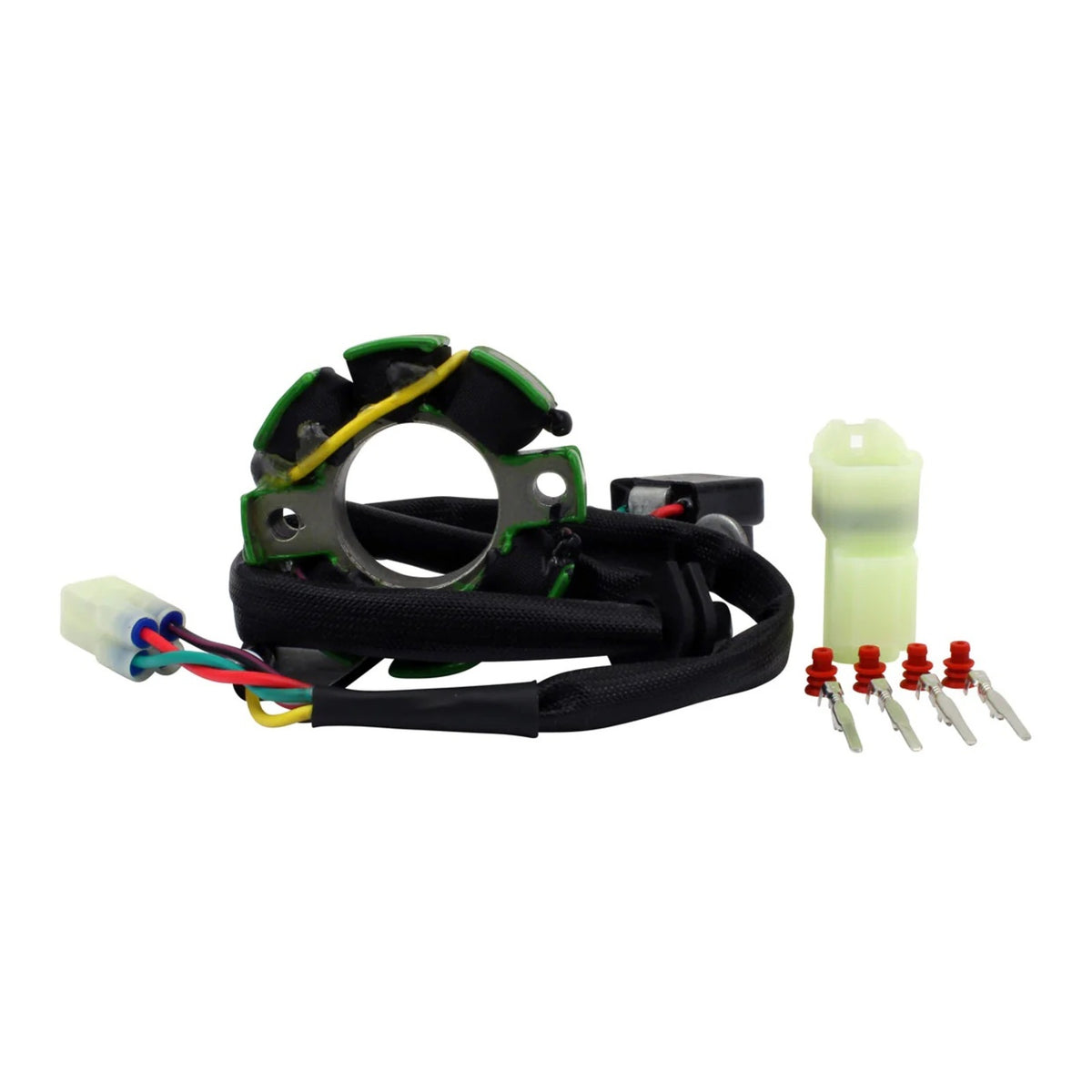

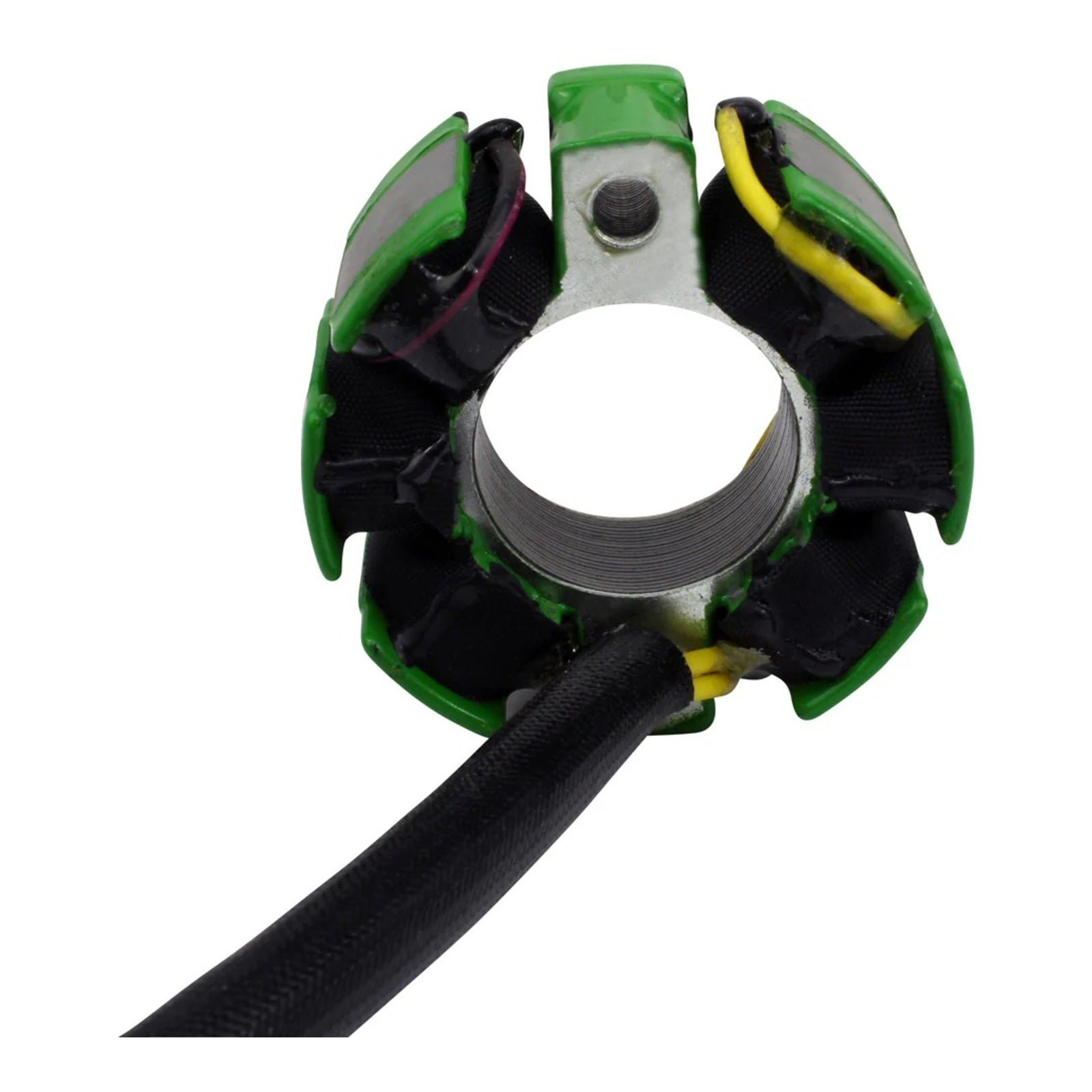

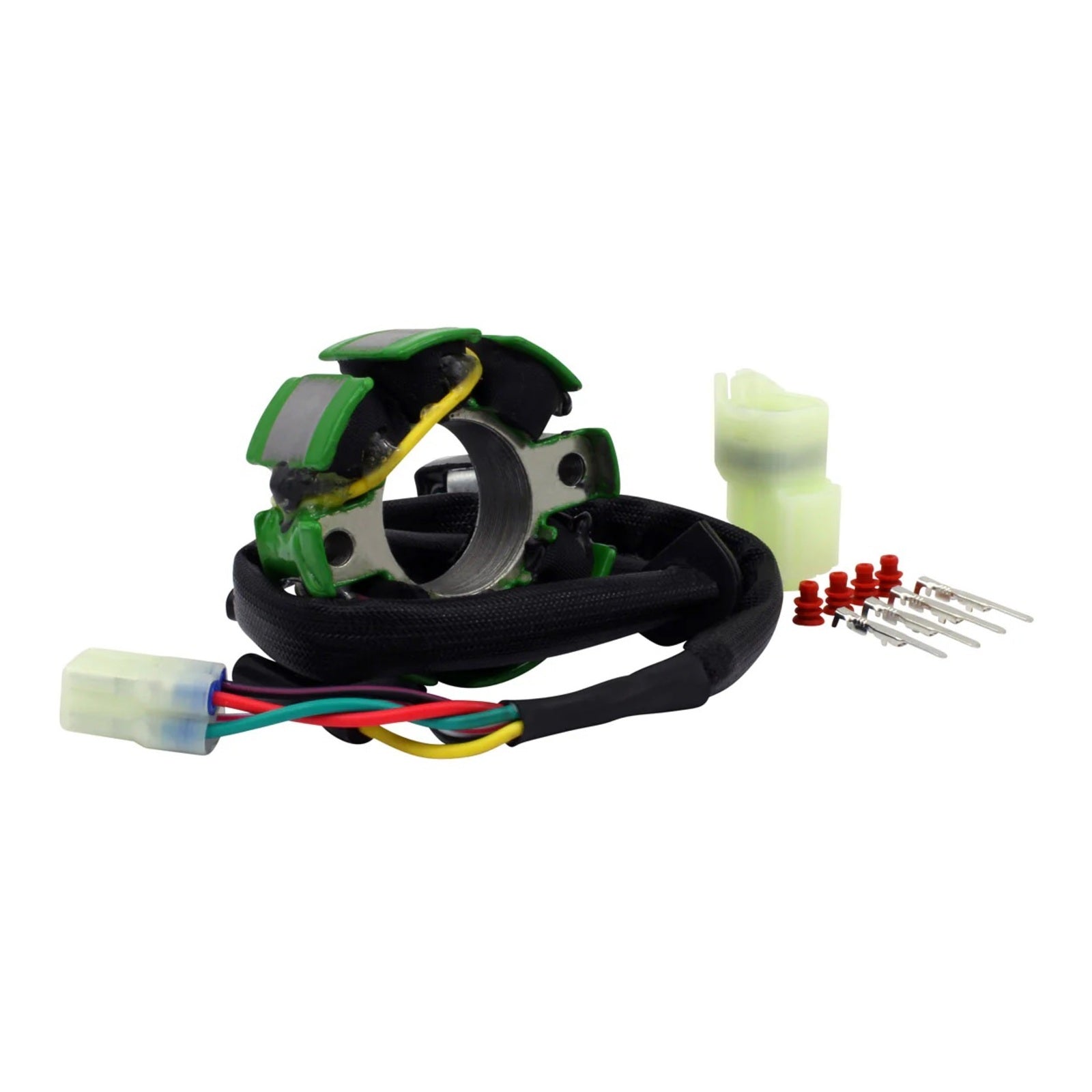

50W Lighting Stator Assorted KTM Husqvarna GasGas ‘16-’24

Brand new aftermarket lighting stator.

Features:

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.

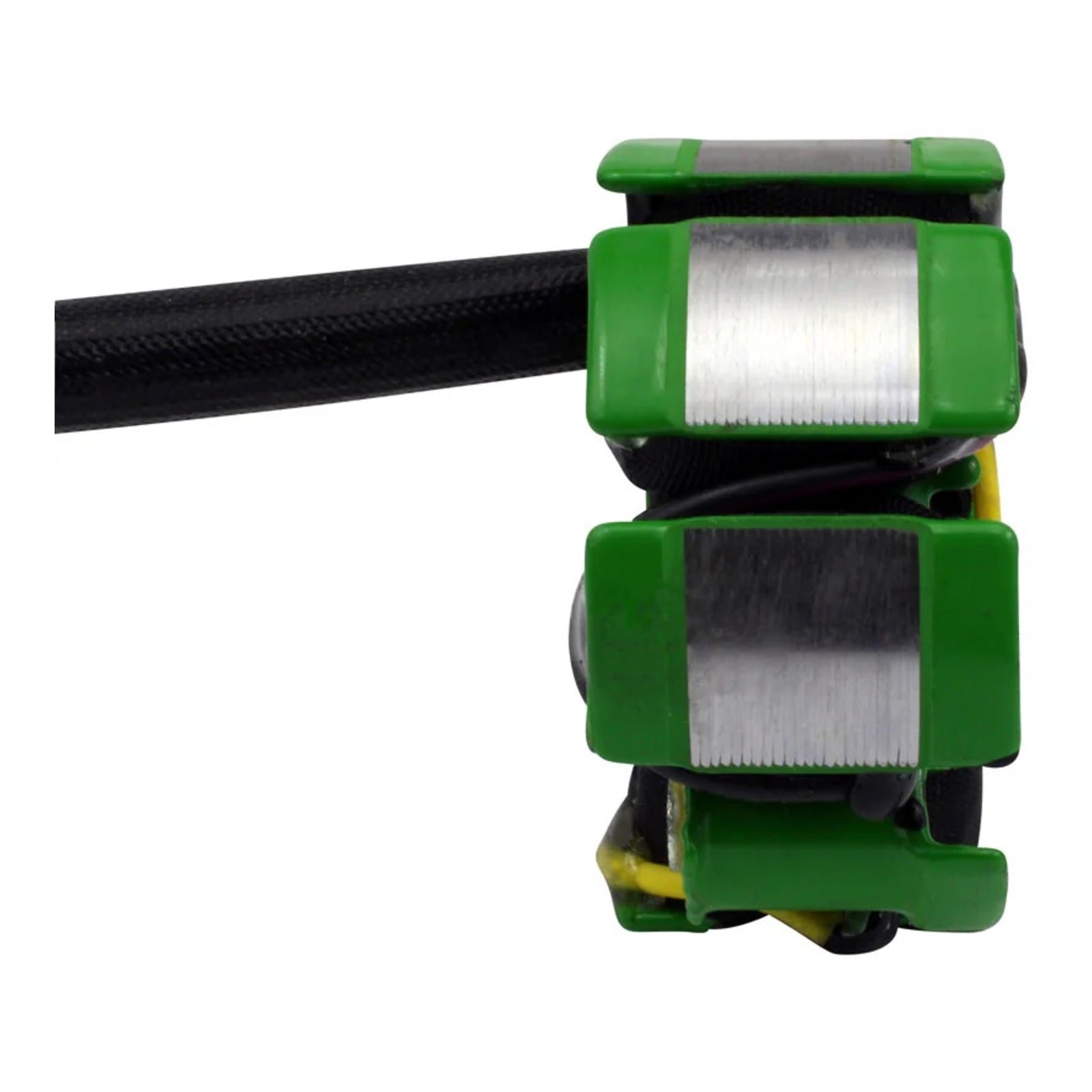

• Highest grade of lamination materials.
• Highest grade of copper winding, resistant to 200°C.

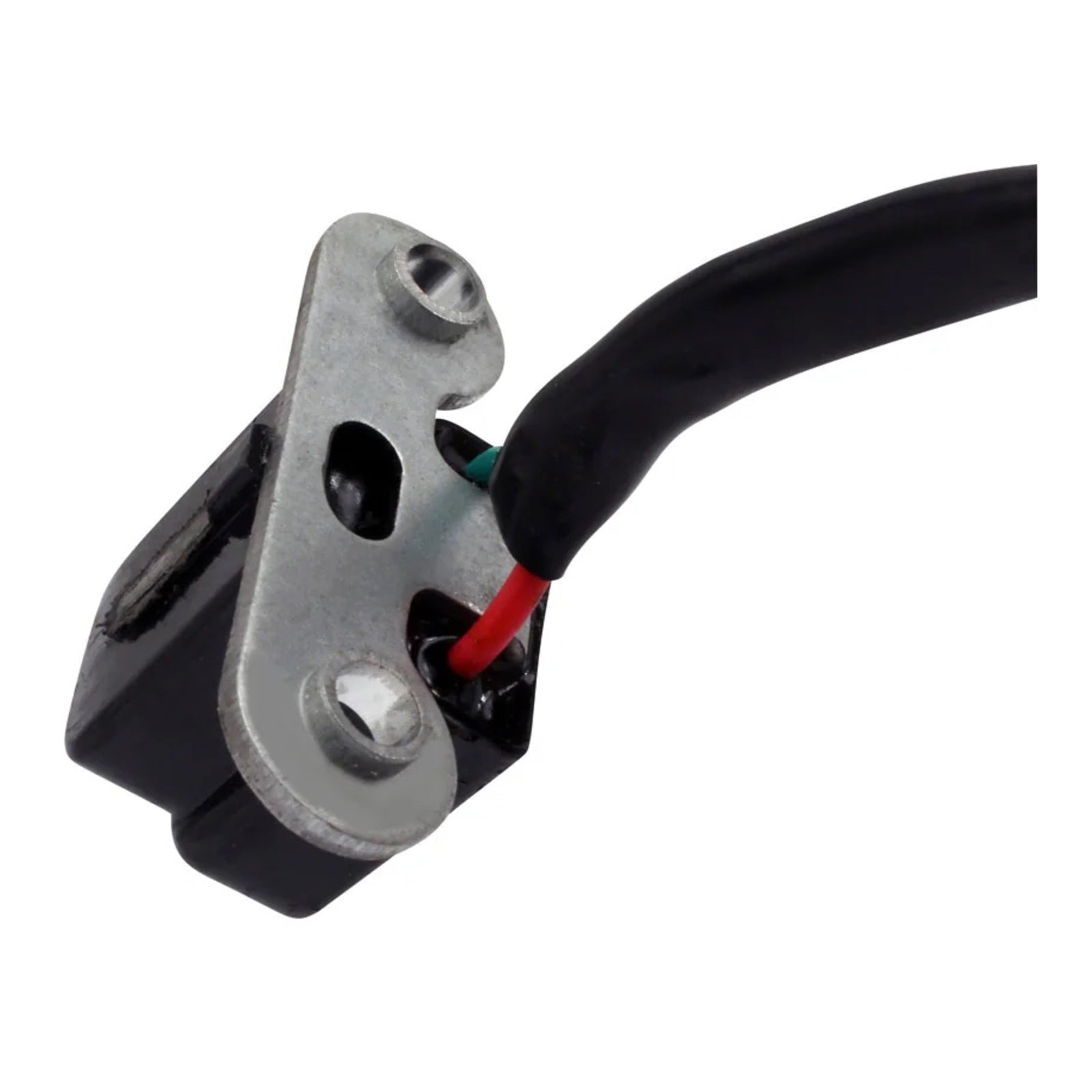

• Pick up pulsar coil included.

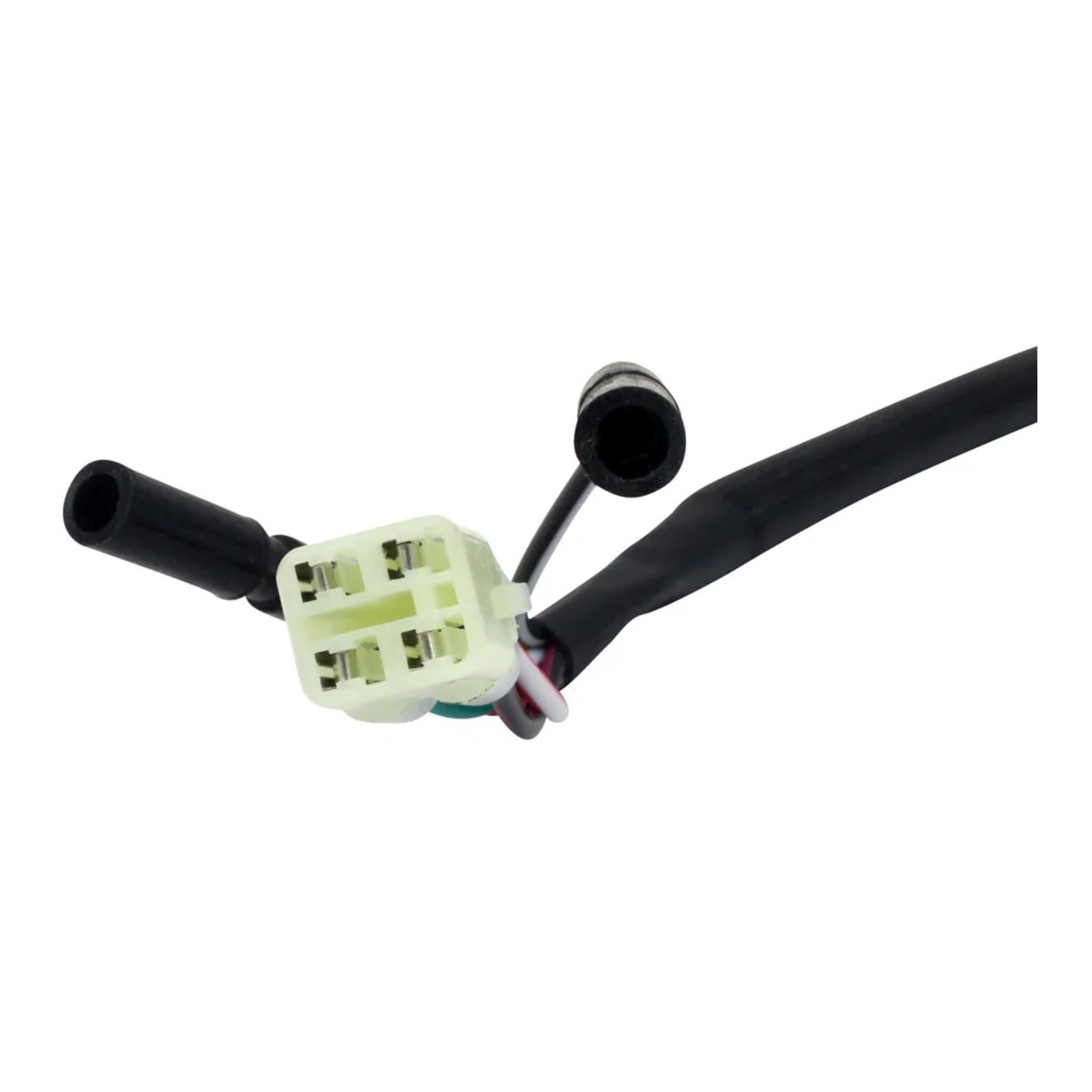

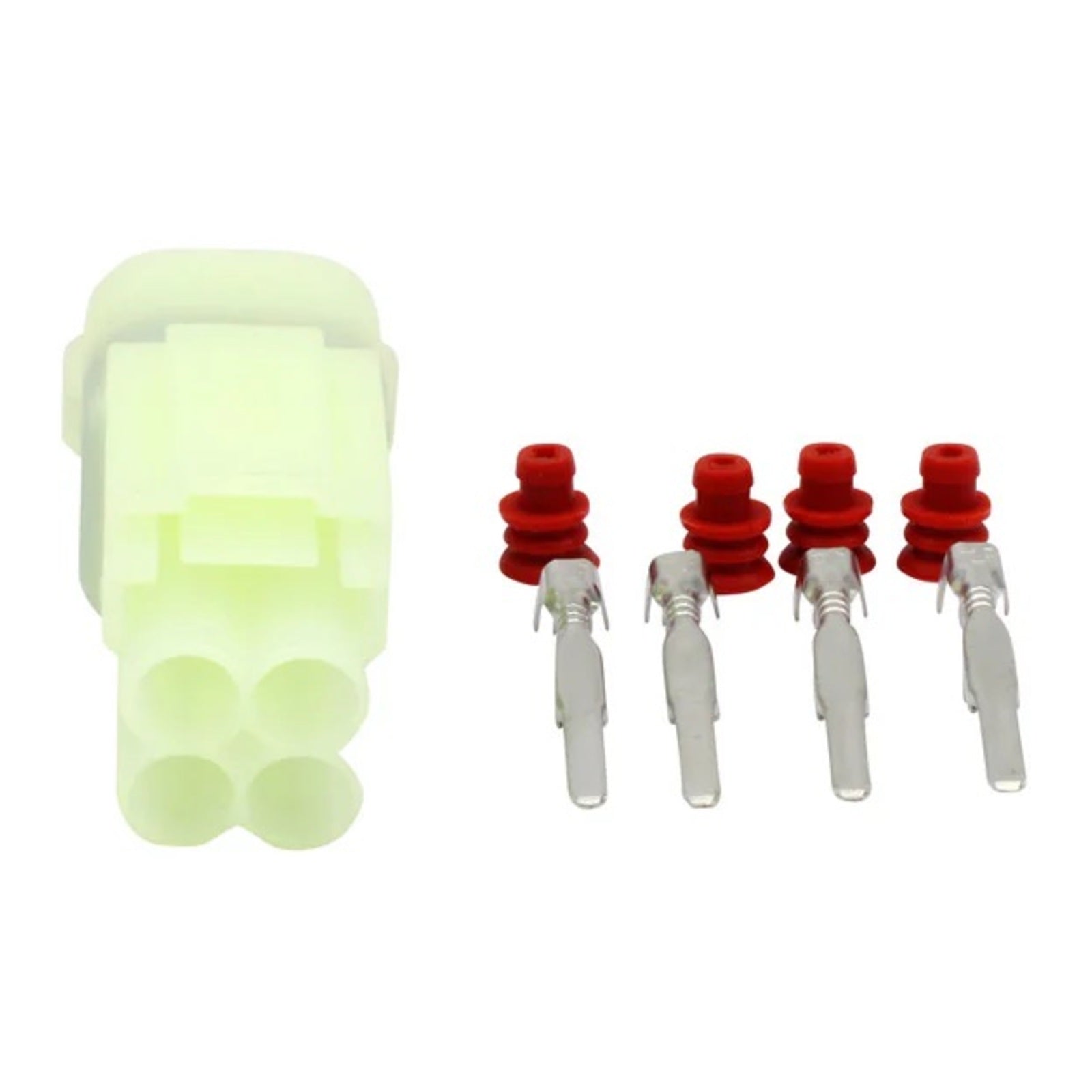

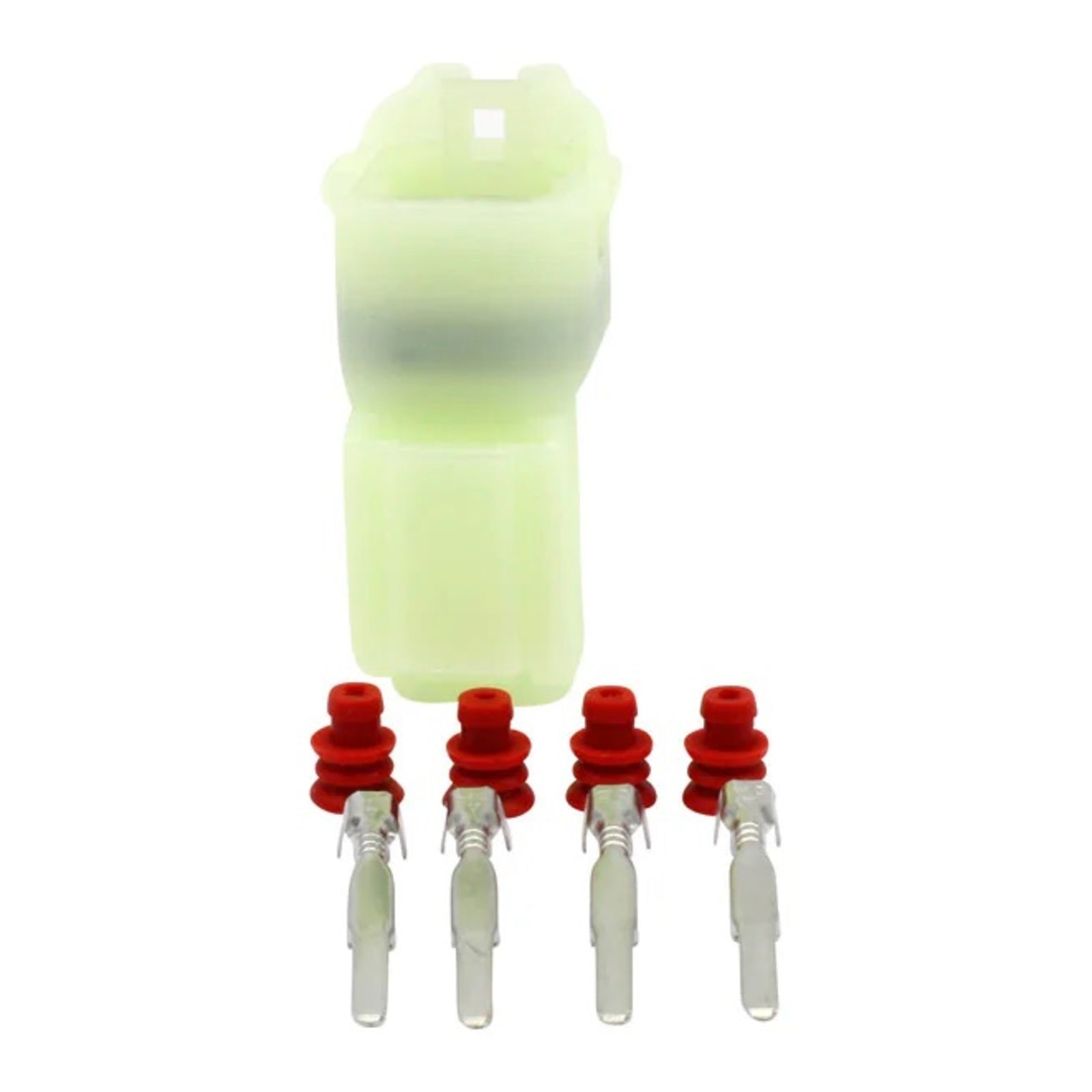

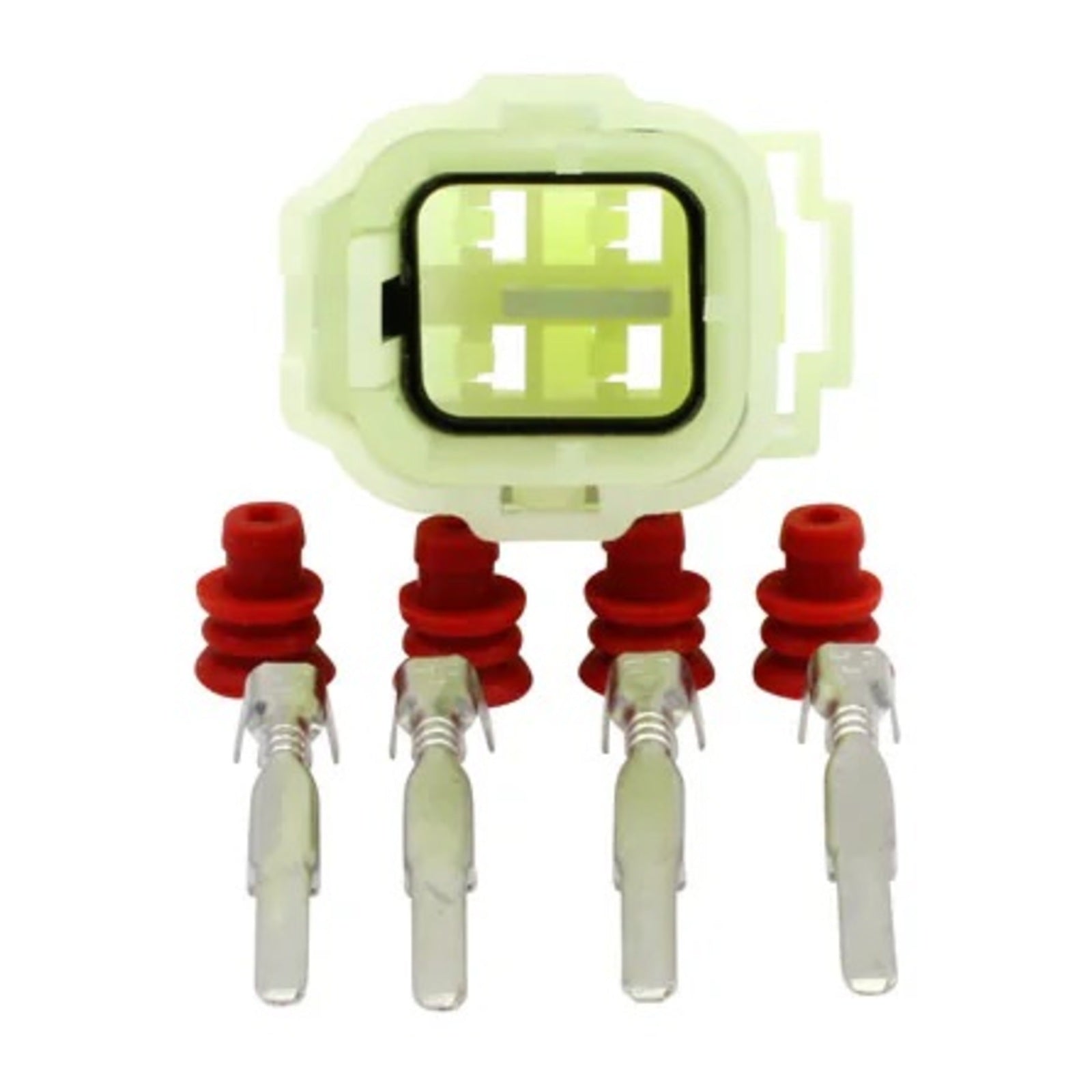

• Connectors included.

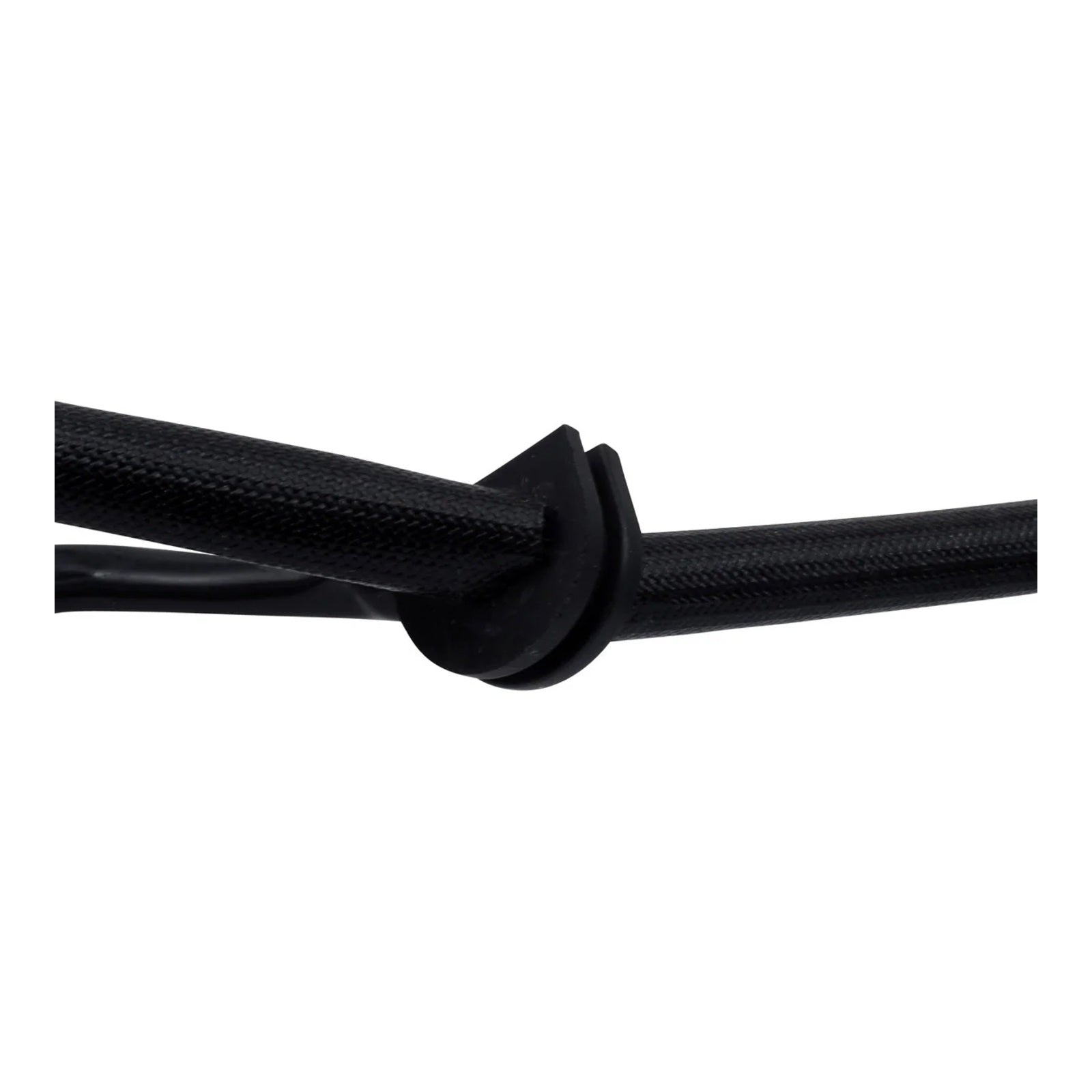

• Rubber grommet included.
• All products shipped are tested.

Specifications

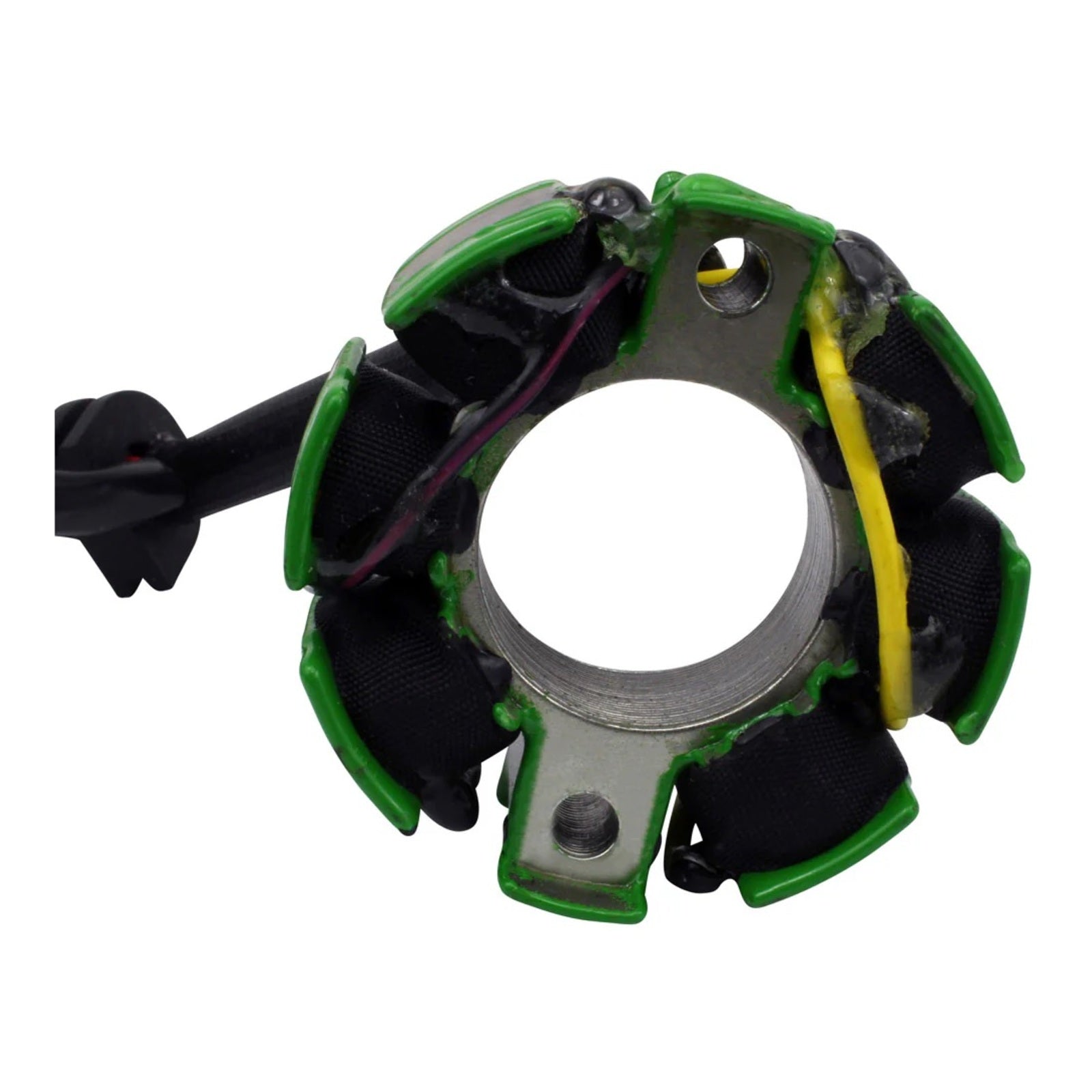

• Dimensions:
  • Interior diameter: 28 mm
  • Exterior diameter: 59 mm
  • Thickness: 16 mm
  • Wire length (stator to grommet): 100 mm
  • Wire length (grommet to plug): 400 mm
  • Pickup coil wire length (to grommet): 60 mm
• Other Specifications:

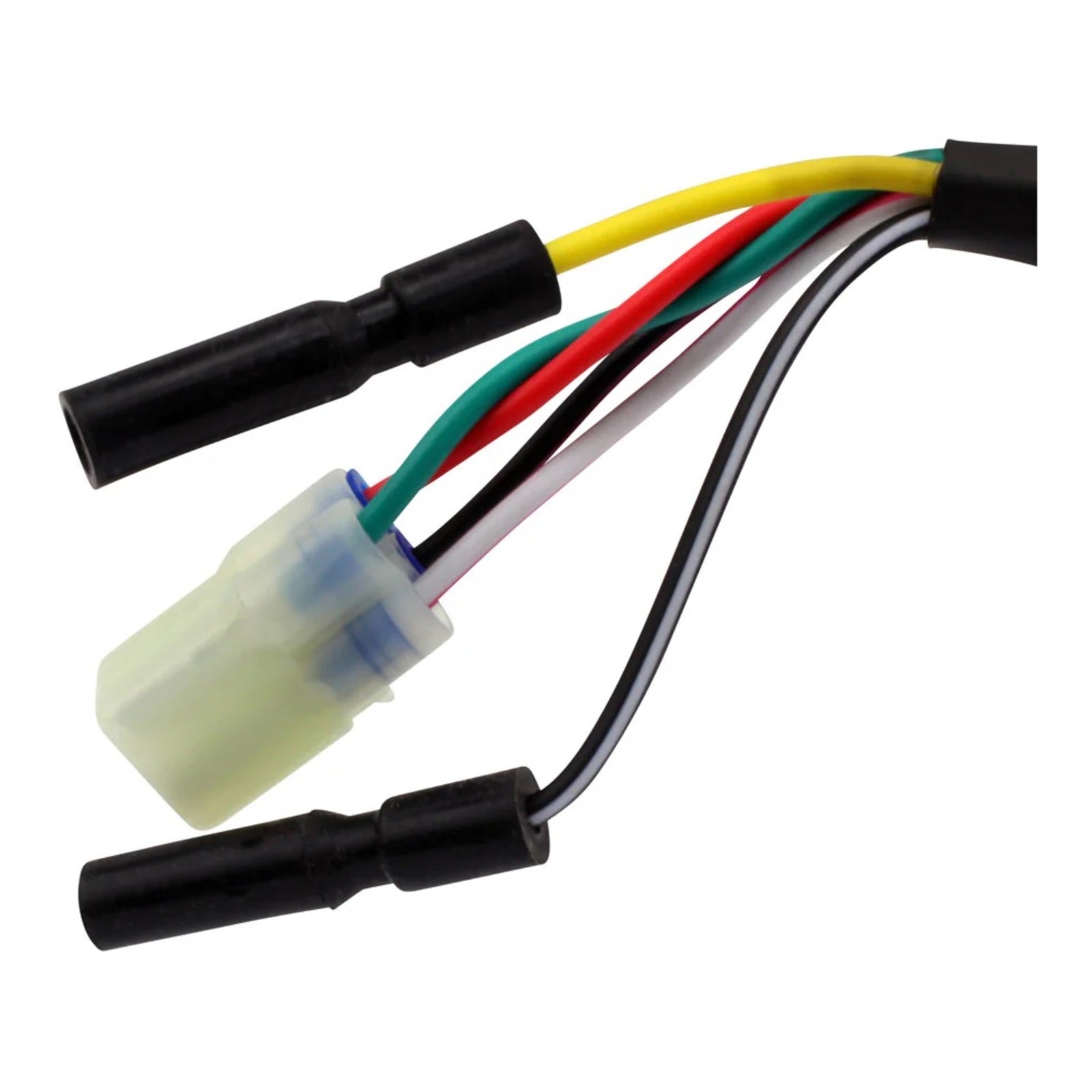

  • Number of wires: 4
  • Number of plugs: 1
  • Number of pins: 4
  • Number of poles: 6
• Wire-to-Wire Resistance:
  • Pickup: Red to Green = 100 Ω ±20%
  • Source: Black/Red to Red/White = 35 Ω ±20%
