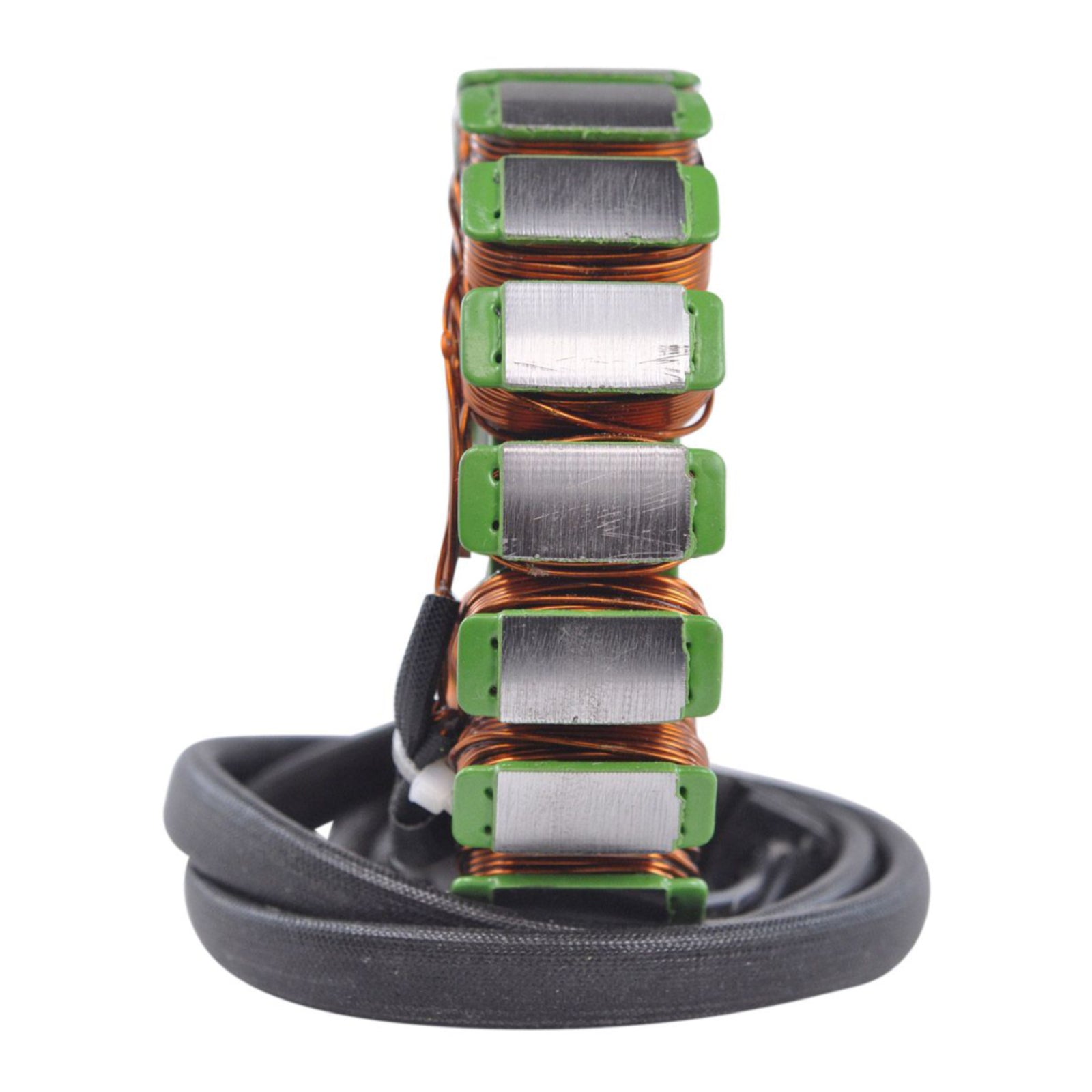

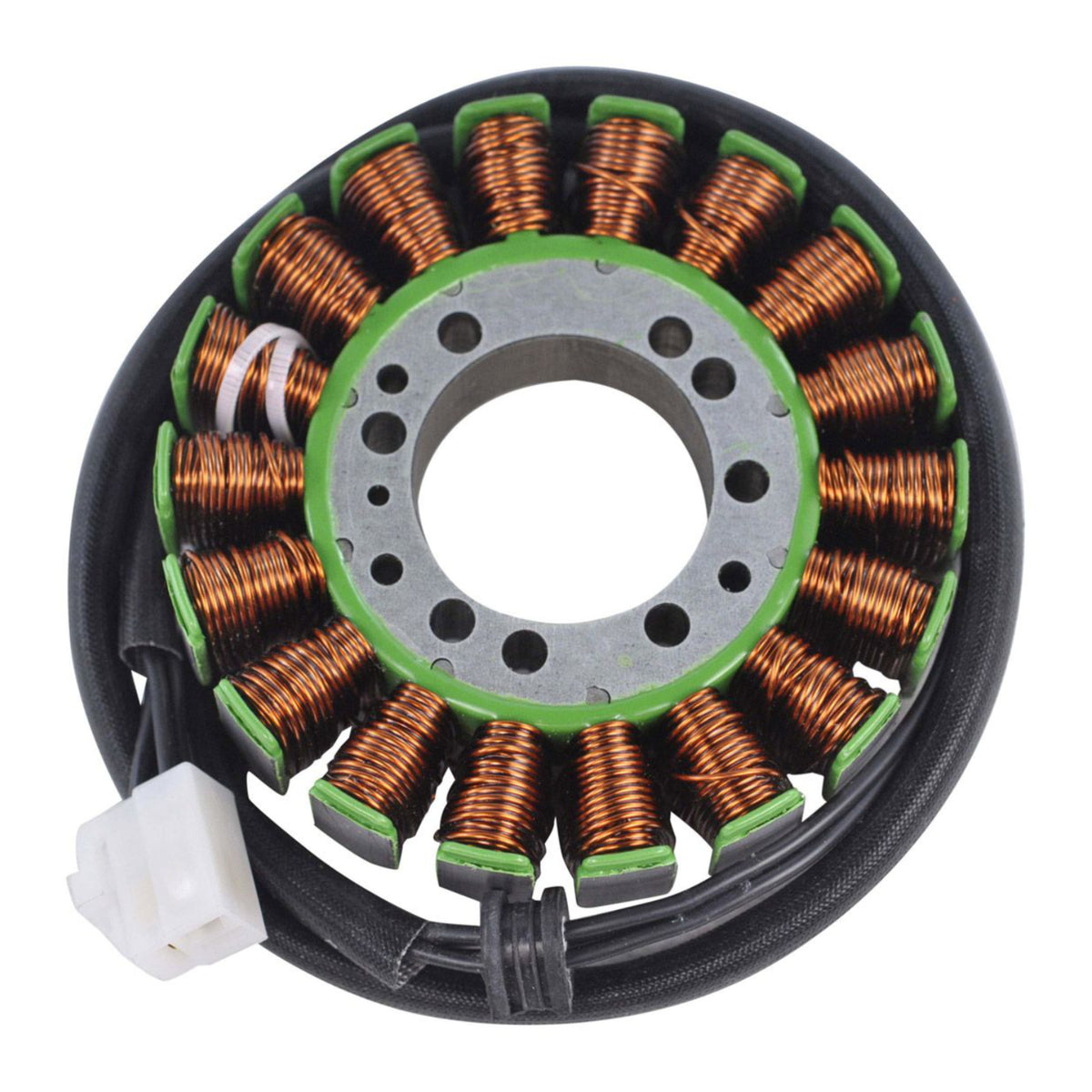

Generator Stator Triumph Daytona 955i ‘02-’06

Direct replacement to your original unit.

• Plug-and-play, direct fit, easy installation.
• Highest of grade lamination materials
• Highest of grade copper winding, resistant to 200 degrees Celsius.

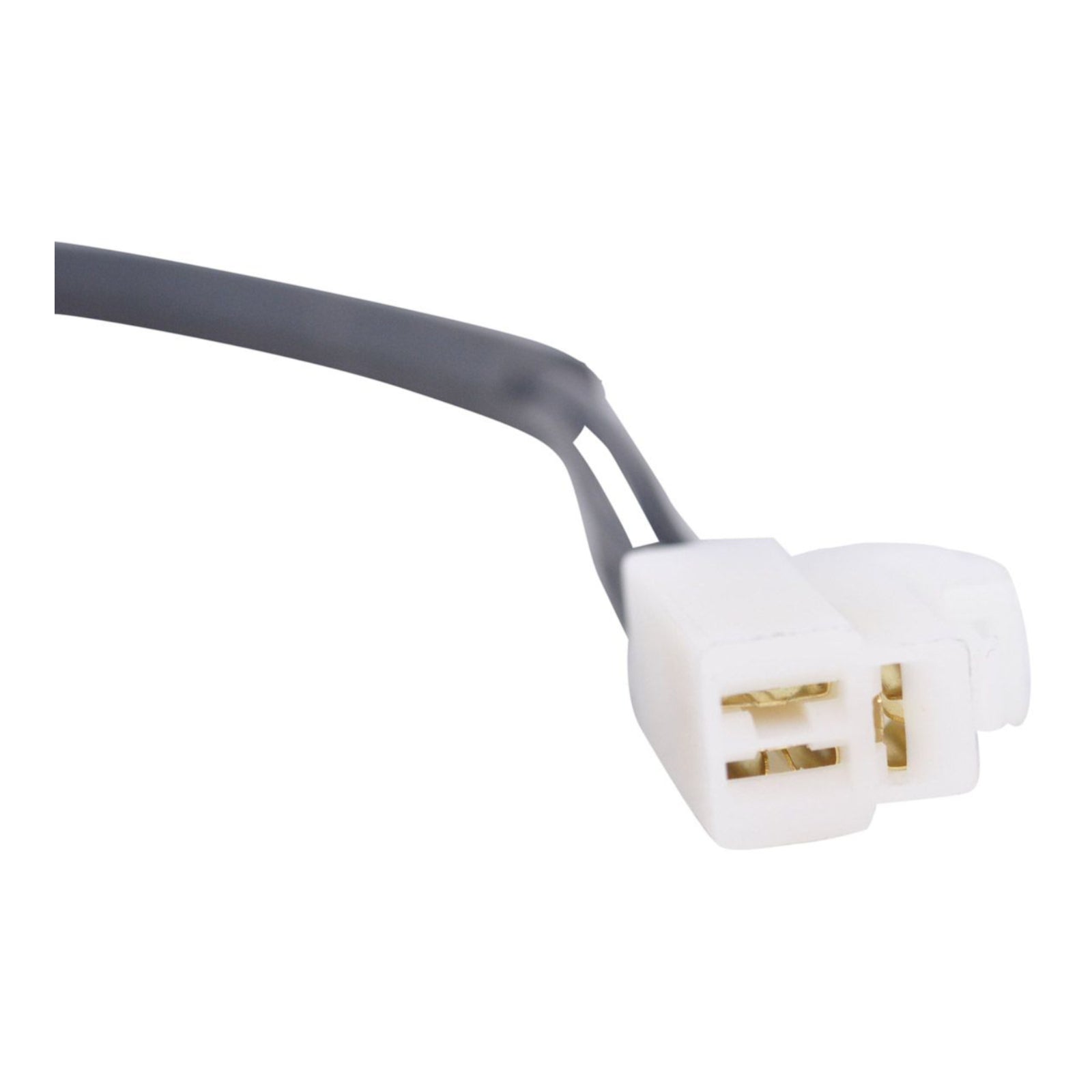

• Connector included
• Rubber grommet included
• All product shipped are tested

Specifications:

• Dimension:

  • Interior Diameter: 42 mm
  • Exterior Diameter: 115 mm
  • Width: 21 mm

• Other Specifications:

  • Number of Wires: 3
  • Number of Plugs: 1
  • Number of Terminals: 3
  • Harness Length Stator to Grommet: 80 mm
  • Harness Length Grommet to Plug: 650 mm

• Wire to Wire Resistance:

  • Alternator: Between each Black = 0.5 ohms +/- 20%
