LT-A500X
- Regular price $0.00
-
Sale %
You sometimes need the ultimate grunt from your quad, but mostly it's an everyday all-round gutsy farm companion. Here's where...
Vendor: SUZUKI
Type: N/a
Sku: N/a

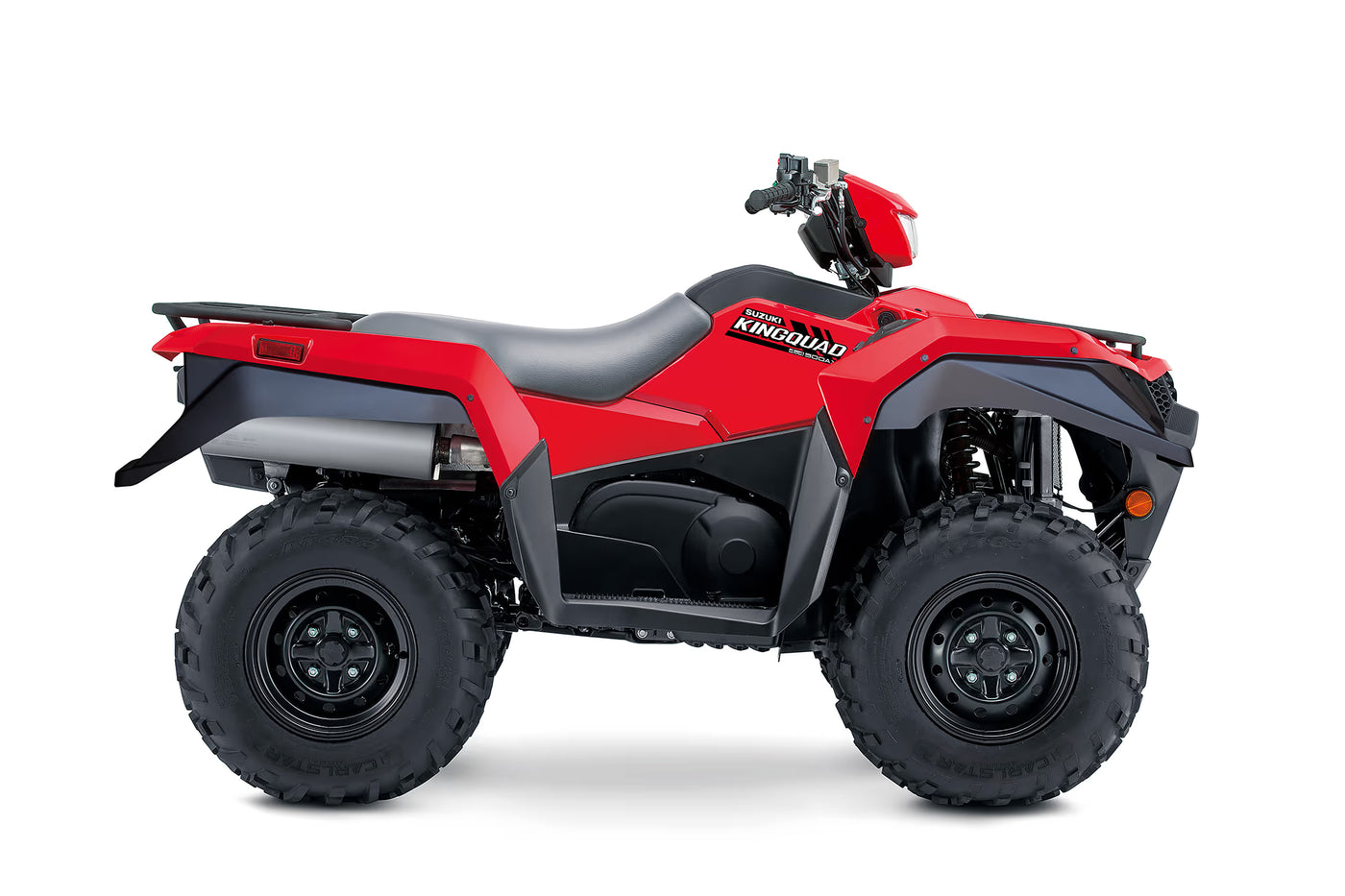

You sometimes need the ultimate grunt from your quad, but mostly it's an everyday all-round gutsy farm companion. Here's where the KingQuad 500 comes into its own. You get all the advances of the flagship ATV, the KingQuad 750, but in a package that offers the best value in its class.
The KingQuad 500 Auto boasts fuel-injected performance, push-button 2WD/4WD select, front disc brakes and sealed oil-bathed multi-disc rear brakes for extra stopping power. Overall handling is made easier and the ride made more comfortable and stable with independent front and rear suspension. Plus the torque-sensing limited-slip front differential provides maximum traction and light steering in tight turns.
Comfort, control, power, and convenience all in the KINGQUAD style.
Specifications
| Engine Type | 4-stroke, liquid-cooled, SOHC |
|---|---|
| Engine Displacement (CC) | 493 |
| Bore x Stroke | 87.5 mm x 82.0 mm |
| Transmission | CVT Automatic |
| Fuel System | Fuel Injection |
| Starter System | Electric |
| Overall Length (mm) | 2190 |
| Overall Width (mm) | 1275 |
| Overall Height (mm) | 1285 |
| Wheelbase (mm) | 1285 |
| Ground Clearance (mm) | 260 |
| Seat Height (mm) | 920 |
| Curb Mass (kg) | 317 |
| Suspension - Front | Independent, double wishbone, coil spring, oil damped |
| Suspension - Rear | Independent, double wishbone, coil spring, oil damped |
| Brakes - Front | Disc brake, twin |
| Brakes - Rear | Sealed oil-bathed multi-disc |
| Tyre - Front | AT25 × 8-12**, tubeless |
| Tyre - Rear | AT25 × 10-12**, tubeless |
| Fuel Tank Capacity (L) | 17.5 |
Features
3-YEAR FACTORY WARRANTY
UTILITY / CHASSIS
- Towing capacity up to 600kg
- Trailer hitch mount has changed to a square-receiver type
- Multi-function instrument panel with service reminder icon
- Expansive storage compartments including a front waterproof storage and two rear storage compartments
- Handlebar-mounted headlight
- Flush-mount, LED-style taillight
- A range of Genuine Suzuki Accessories
PERFORMANCE
- Dual front hydraulic disc brakes with 190mm rotors
- Sealed, oil-bath multidisc rear brake with 106mm discs
COMFORT
- Rear stabiliser system
- independent suspension system
- Long suspension travel
- Front wheel travel 172mm
- Rear wheel travel 194mm
