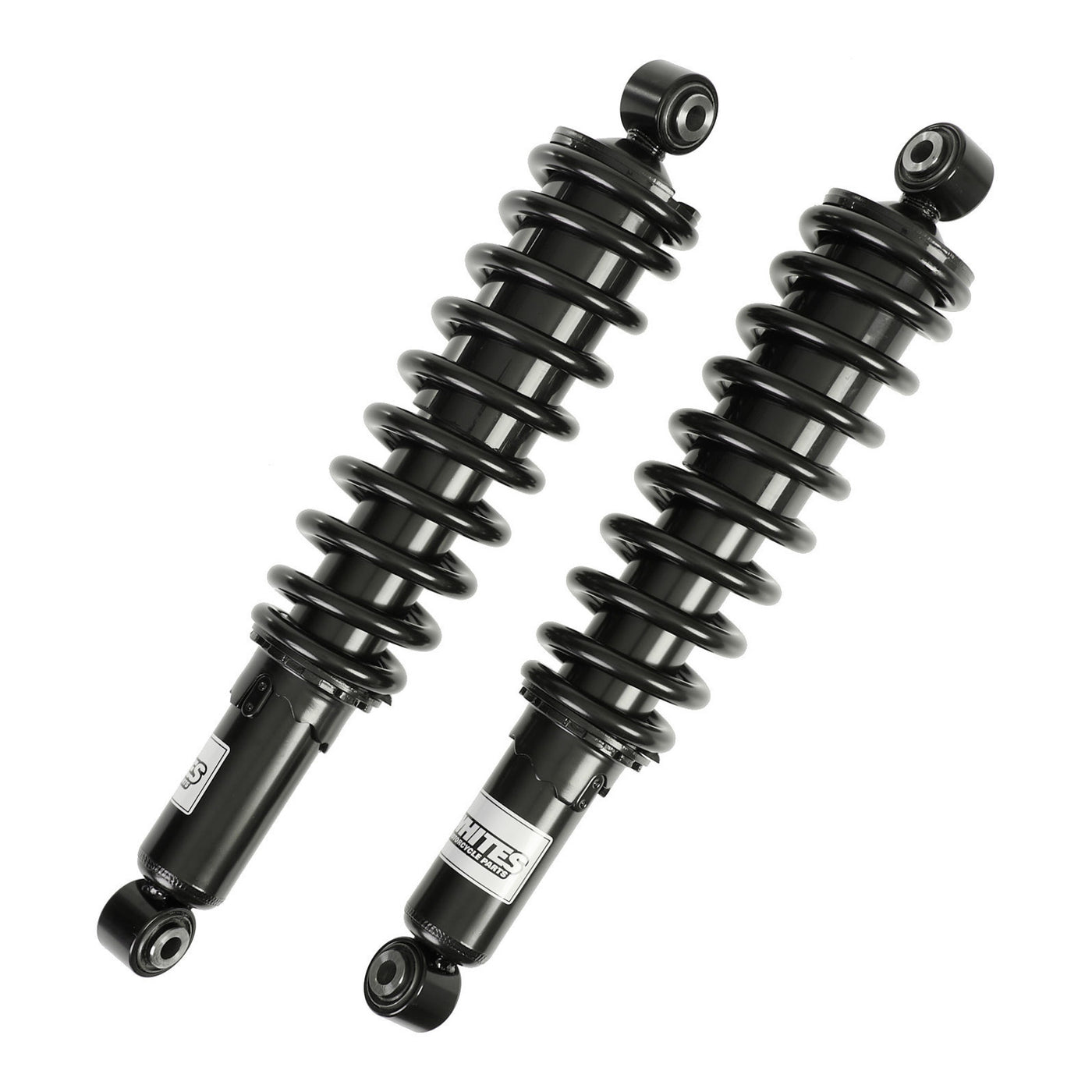

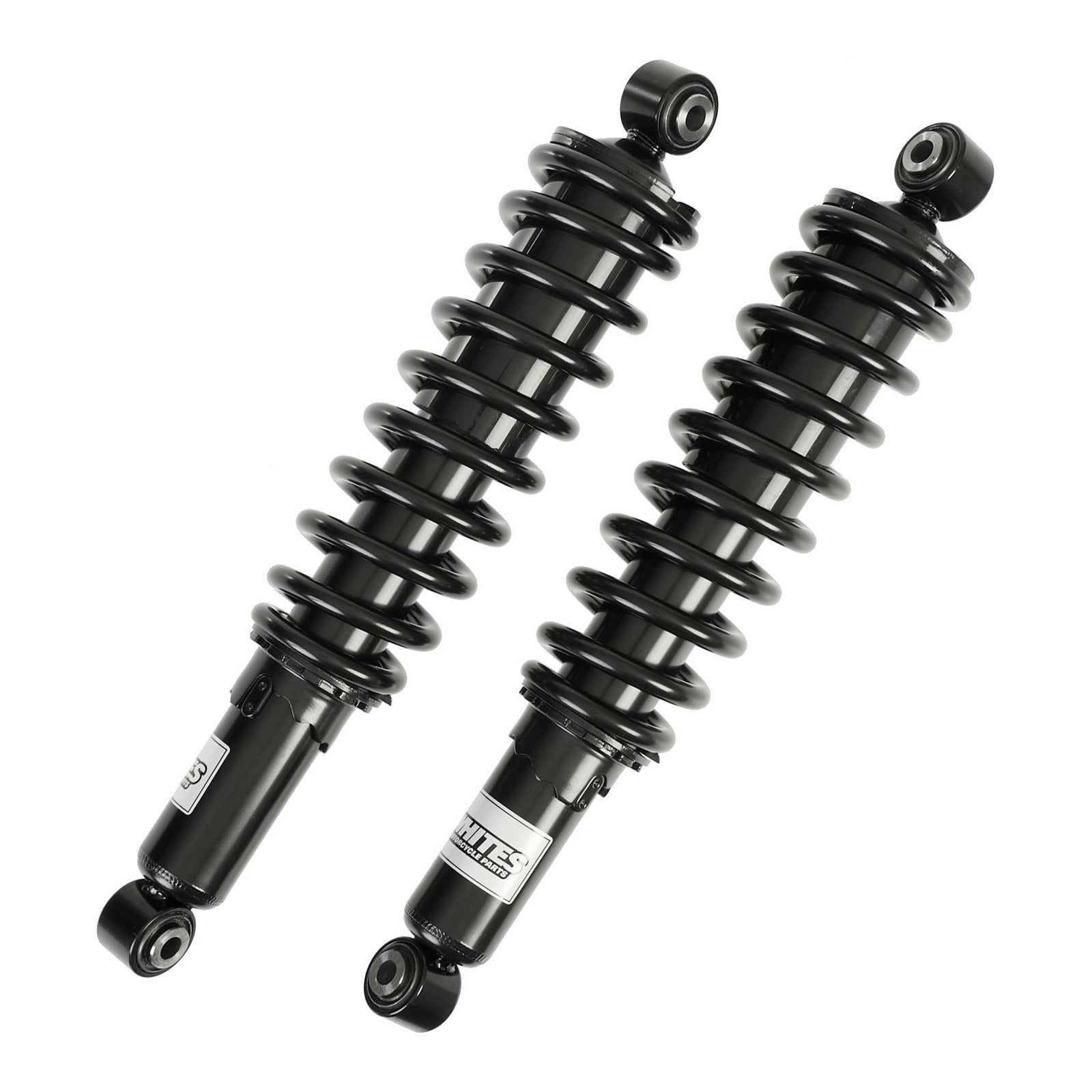

Whites Shock Absorbers Suzuki LTA700 KingQuad Rear - Pair

Whites' extensive range of ATV shocks are perfect for servicing your four-wheeled machine, ATVs work and play in the harshest environments.

Sold in pairs and available for both the front and rear of most common ATVs. Manufactured with a steel construction for exceptional strength and durability your new shock will last the distance, while the upgraded damping provides a comfortable ride.

Features:

• Fits 05-07 Suzuki LTA700 King Quad - Front, 08-13 Suzuki LTA750 King Quad - Rear
• Steel construction shock body.
• Upgraded damping provides an extra comfortable ride.
• Replaces OEM Part: 62100-31G00-019, 62100-31G10-019, 62100-31G00-YU8
• Sold as a pair.

Dimensions:

• Extended Length (eye to eye length): 365mm
• Compressed Length: 290mm
• Top Eyelet: 10x30mm
• Bottom Eyelet: 10x30mm
• Shaft OD: 12.5mm
• Damper Diameter: 38mm
• Spring OD: 63.5mm
• Spring Diameter: 9mm
