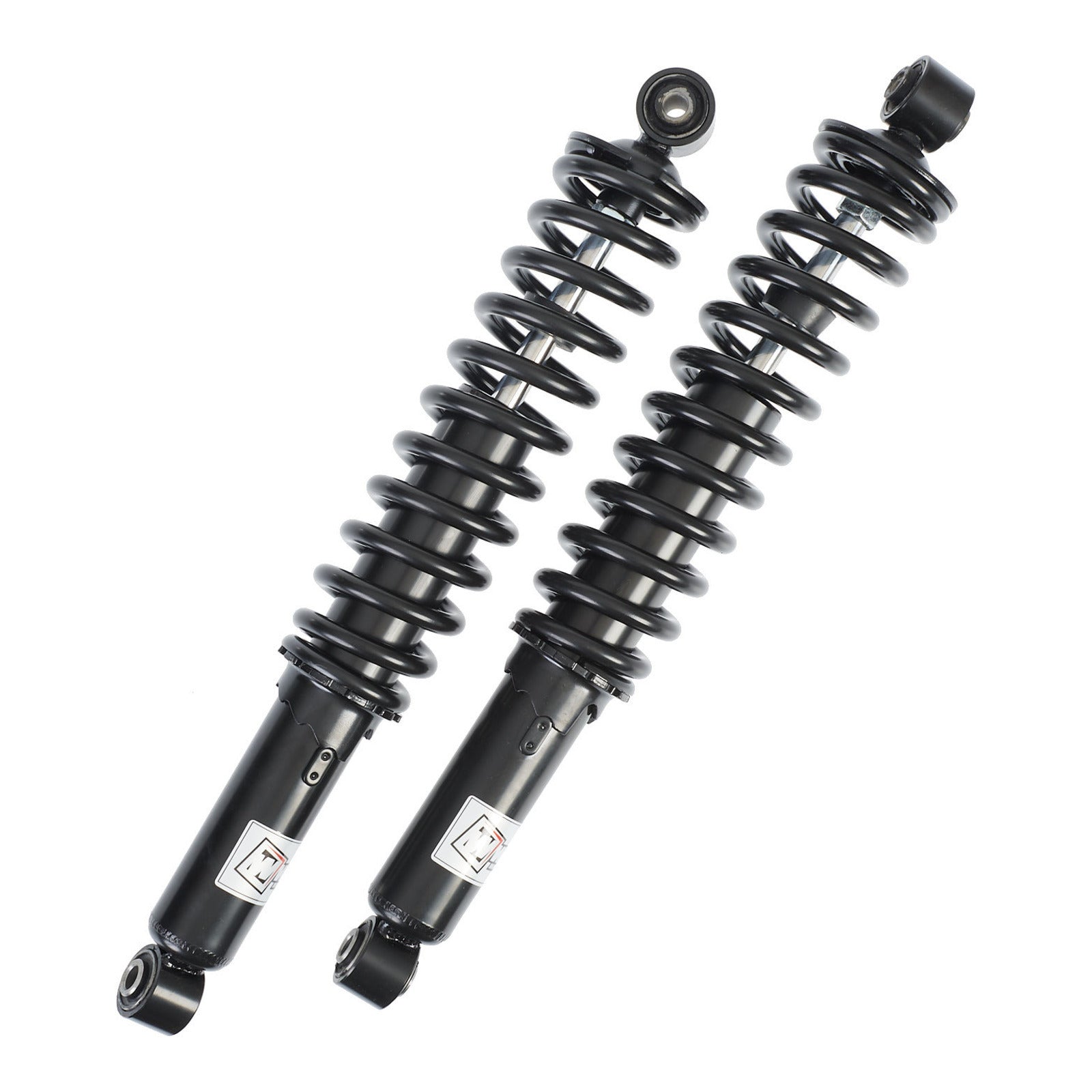

Whites Shock Absorbers Yamaha Grizzly 700 4WD Rear - Pair

Whites' extensive range of ATV shocks are perfect for servicing your four-wheeled machine, ATVs work and play in the harshest environments.

Sold in pairs and available for both the front and rear of most common ATVs. Manufactured with a steel construction for exceptional strength and durability your new shock will last the distance, while the upgraded damping provides a comfortable ride.

Features:

• Fits 07-13 Yamaha Grizzly 700 4WD - Rear
• Steel construction shock body.
• Upgraded damping provides an extra comfortable ride.
• Replaces OEM Part: 3B4-22210-00-00, 3B4-22210-01-00, 1HP-F2210-01-00
• Sold as a pair.

Dimensions:

• Extended Length: 410mm
• Compressed Length: 332mm
• Top Eyelet: 10x32mm
• Bottom Eyelet: 10x30mm
• Shaft OD: 12.5mm
• Damper Diameter: 38mm
• Spring OD: 64.2mm
• Spring Diameter: 9.2mm
