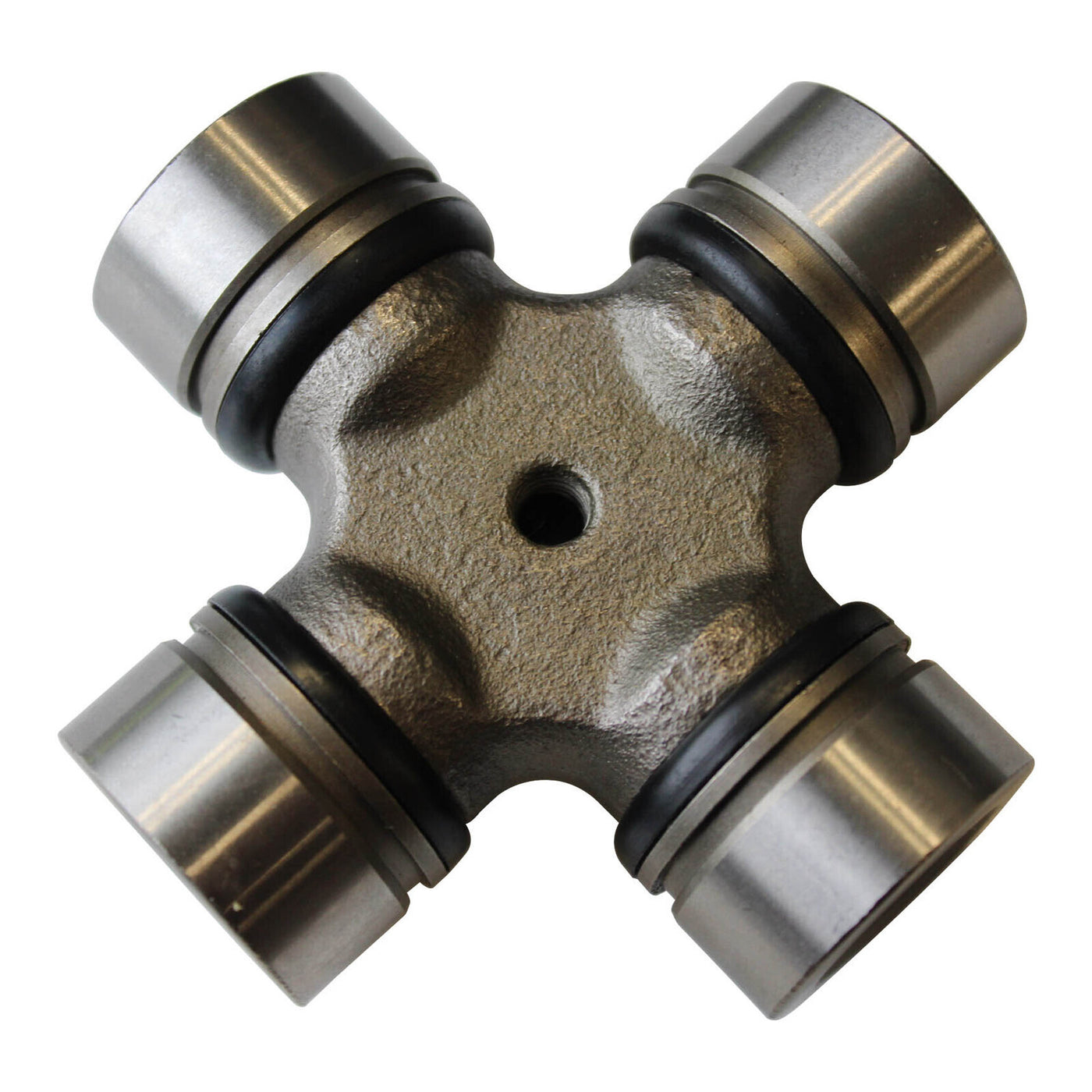

WMP ATV/UTV Joint Assembly WPUJ19

U-Joint

Whites U-Joints are cold forged from steel and case hardened. Pre-greased with hi-temp grease and bearing cups are sealed to keep contamination out and grease in.

U-Joints are model specific, it is recommended that you use our fitments seach to ensure correct fit.

Replace old and worn out U joints with high-quality Whites ATV/UTV U joint assemblies. Cold forged from SCM-415 steel and case hardened, and pre-greased using hi-temp lithium grease. Included sealed bearing cups keep contamination out and the grease in improving the life of your U joints. While the centrally located grease zero and channels distributes grease evenly when injecting additional grease during maintenance.

Cold forged from SCM-415 steel
Case hardened for additional strength and durability
Pre-greased using hi-temp lithium grease
Bearing cups included preventing contamination
Centrally located grease zero

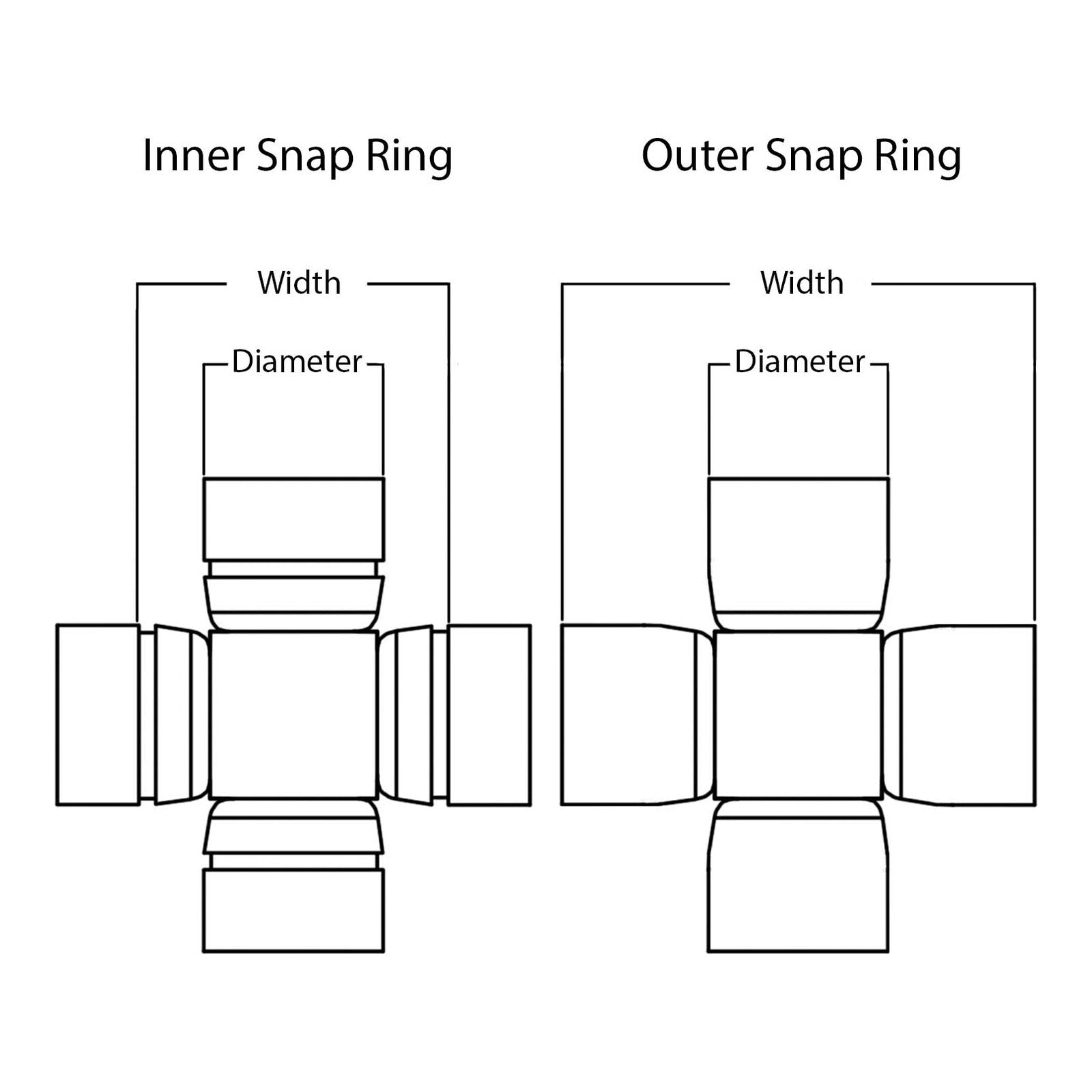

Diameter: 30mm
Width: 59.4mm
Type: Inner Snap Ring

Kit Includes:
1x ATV/UTV U-Joint
1x 90-degree nipple
1x 45-degree nipple
4x Circlips
4x Sealed bearing cups
